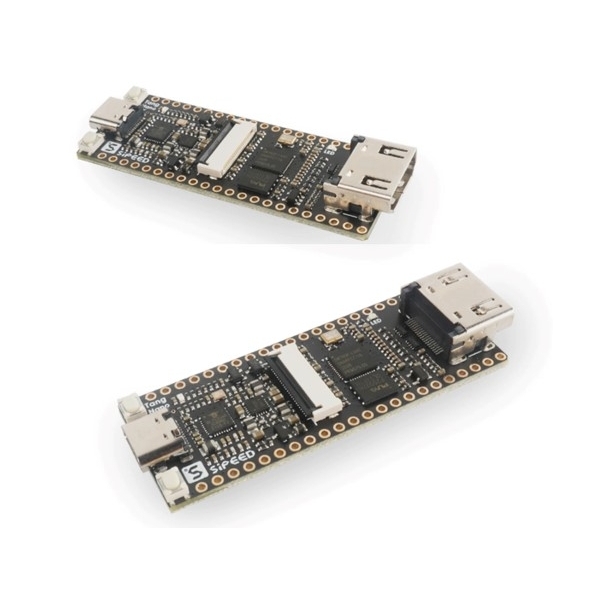

SiPeed Tang Nano 4k

The SiPeed Tang Nano 4k is a low cost FPGA module and an upgrade to the Tang Nano FPGA board with a more powerful GOWIN GW1NSR-LV4C FPGA with 4608 LUT (instead of 1152) and a Cortex-M3 microcontroller embedded into the chip.

Speed

Key Features:

  • FPGA – GOWIN GW1NSR-LV4C aka GW1NSR-4C with
  • 4608 logical units (LUTs)
  • 3456 registers
  • 16 multiplier parameters
  • 180Kbit block SRAM, 64Mbit PSRAM
  • 2x PLL
  • Up to 44x user I/O
  • Arm Cortex-M3 hard processor
  • Storage – 32 Mbit NOR flash
  • Video Output – HDMI port
  • Camera I/F – DVP camera connector for OV2640 camera sensor up to 1600 x 1200 (UXGA) resolution
  • USB – USB Type-C port for power and JTAG programming
  • Expansion – 2x 22-pin headers with GPIOs, SPI, camera, HDMI, PLL, clock and power signals
  • Misc – User LED, 2x user button
  • Power Supply – 5V via USB
  • Dimensions – ~60 x 23 mm

    Purchase from AliExpress at:

    www.aliexpress.com
