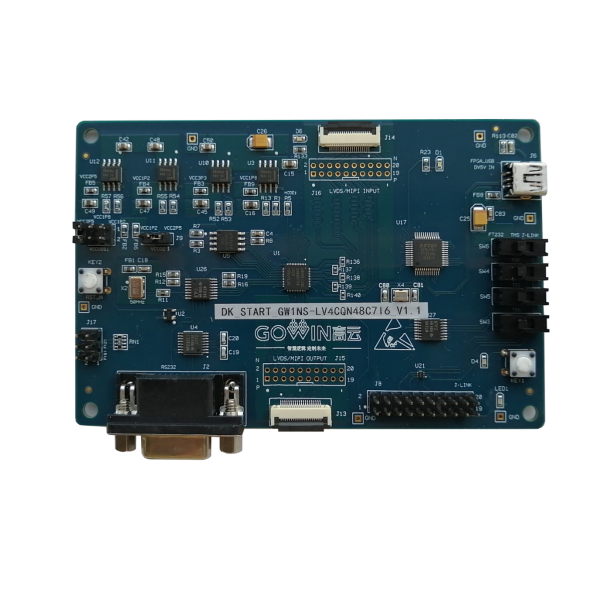

DK_START_GW1NS-LV4CQN48C7I6_V1.1

Previous Name:DK-START-GW1NS4-QN48

擷取3

The development board adopts the GW1NS-4 SoC FPGA. SoC FPFA is embedded with an ARM Cortex-M3 hard core processor. When the ARM Cortex-M3 hard-core processor is employed as the core, the needs of the Min. memory can be met. This board also supports USB2.0 PHY, user flash, and ADC convertor. The FPGA logic resources and other embedded resources can flexibly facilitate the peripheral control functions, which provide excellent calculation functions and exceptional system response interrupts. They also offer high performance, low power consumption, flexible usage, instant start-up, affordability, nonvolatile, high security, and abundant package types, among other benefits. It can be widely used in industrial control, communication, Internet of things, servo drive, consumer, and other industries.

Documents Download
- DK-START-GW1NS4/SR4/SER4-QN48
Schematic DK-START-GW1NS4&GW1NSR4&GW1NSER4-QN48 SCH_V1.1 Download
User Guide GW1NS & GW1NSR & GW1NSE & GW1NSER series of FPGA Products Schematic Manual** Download
User Guide DK-START-GW1NS4 GW1NSR4 GW1NSER4-QN48 V1.1 User Guide Download
