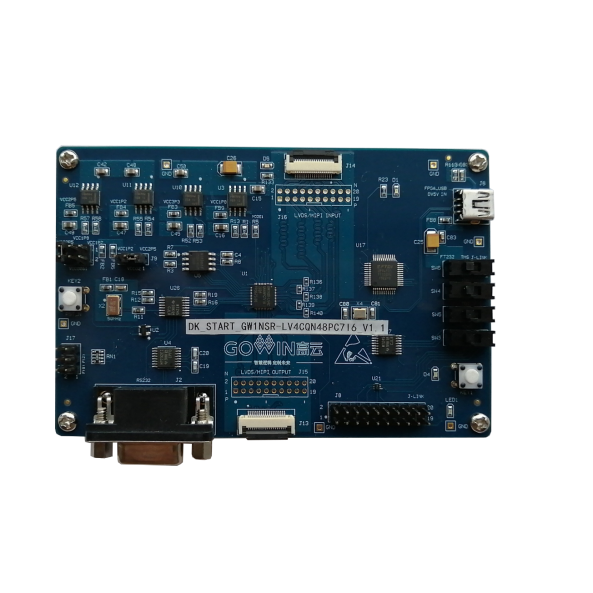

DK_START_GW1NSR-LV4CQN48PC7I6_V1.1/ QN48GC7I6_V1.1

Previous Name: DK-START-GW1NSR-4C_QN48P/ QN48G

DK-START-GW1NS4-QN48_工作區域 1

Full names:

DK_START_GW1NSR-LV4CQN48PC7I6_V1.1
DK_START_GW1NSR-LV4CQN48GC7I6_V1.1



The development board adopts the GW1NSR4 chip, the first generation products in the LittleBee® family.  It is one form of SIP chip  that integrates the GW1NS chip and PSRAM memory. It supports an ARM Cortex-M3 hard core processor, USB2.0 PHY, user flash, and ADC convertor.



Features
The structure and feature of the development board are as follows:
1. FPGA

  • Adopts QN48 package
  •  Up to 38 user I/O
  •  Embedded flash, data not easily lost if power down
  •  Abundant LUT4 resources
  •  Multiple modes and capacities of B-SRAM



2. FPGA Configuration Modes

  •  JTAG
  • AUTO BOOT



3. Clock resource

  • 50MHz Clock Crystal Oscillator



4. Key switch and slide switch

  •  One reset button
  •  One key switch



5. LED

  •  One power indicator (green)
  • 1 LEDs (green)
  •  One Key indicator (green)



6. Memory

  • 1Mbit embedded Flash
  •  64Mbit external SPI FLASH



7. MIPI/LVDS

  • Five pairs of LVDS differential input; Four pairs of LVDS differential
    output



8. GPIO

  • Three IOs



9. RS232

  • One RS232



10. LDO Power

  •  3.3 V, 2.5V, 1.8V, and1.2V supported
Documents Download
User Guide DK-START-GW1NS4 GW1NSR4 GW1NSER4-QN48 V1.1 User Guide Download
- BSDL Download
- Minimum FPGA System SCH Download
- Gowin FPGA SCH Symbol Download
