DK_START_GW1NR-LV9LQ144PC6I5_V3.1
Previous Name: DK-START-GW1NR9 V3.1

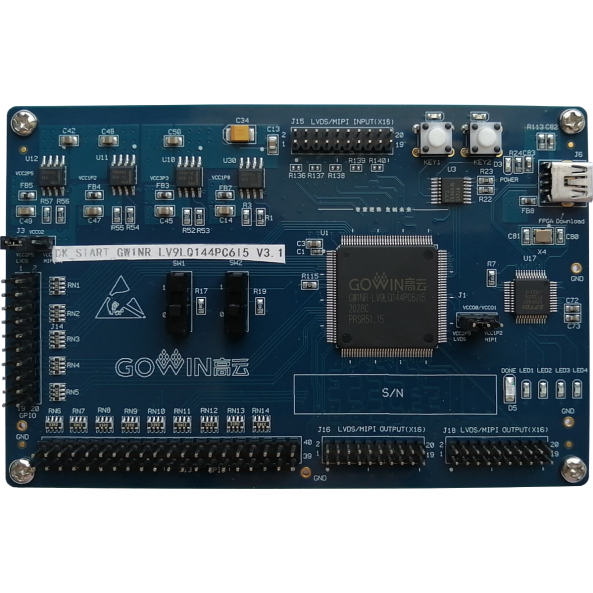

The development board adopts the GW1NR-9 device, which is embedded with PSRAM of 64Mbit, user flash memory and other resources.
The GW1NR series of FPGA products are the first generation of the Gowin LittleBee® family and it is a SIP chip. Based on GW1N, GW1NR series integrates abundant PSRAM. At the same time, it has the characteristics of low power consumption, instant-start, low cost, non-volatility, high security, rich packages, convenient and flexible usage, etc., which can effectively reduce the learning cost and help users quickly enter the design and development field of programmable logic devices.
The development board offers abundant external interfaces, including MIPI/LVDS interfaces, GPIO interfaces, etc. There are also sliding switch,button switch, LED, clock, reset and other resources for developers or fans to learn to use.
Documents Download
| Schematic | DK_START_GW1NR9 SCH_V1.1 | Download |
| User Guide | DK-START-GW1NR9 V1.1 Development Board User Guide | Download |
| User Guide | DK_START_GW1NR9_V2.1 Development Board User Guide | Download |
| User Guide | DK-START-GW1NR9 Development Board Quick Start User Guide | Download |
| Schematic | DK_START_GW1NR9 SCH_V2.1 | Download |
| Schematic | DK_START_GW1NR-LV9LQ144PC6I5_V3.1 SCH | Download |
| User Guide | DK_START_GW1NR9_V3.1 Development Board User Guide | Download |
| - | BSDL | Download |
| - | Minimum FPGA System SCH | Download |
| - | Gowin FPGA SCH Symbol | Download |
| User Guide | DK_START_GW1NR-LV9LQ144PC6I5_V3.1 Development Board User Guide | Download |
| Schematic | DK_START_GW1NR9 SCH_V3.1 | Download |
